Surface or flush mount
Panel mounts to standard electrical box or surface using included hardware. Compatible with most existing intercom cutouts and mounting positions.
HARDWARE · QR ENTRY PANELS
The entry panel that disappears into your building — and works for a decade.
Vivo’s QR entry panels are engineered for the environments other hardware ignores — Caribbean humidity, direct sunlight, coastal salt air, and high-traffic entries that run 24 hours a day, 365 days a year.
PRODUCT
Hardware that earns its place — by getting out of the way.
The best entry panel is the one residents stop noticing after the first week. Not because it’s invisible — because it works so consistently that it never gives them a reason to think about it.
Vivo’s QR panels are designed around that principle. Compact form factor. Flush mount installation. Sealed against weather. Wide-angle reader that works in direct sunlight and low light. And a 10-year hardware commitment that means you’re not having this conversation again in 2029.
SPECIFICATIONS
Built for the conditions your building actually faces.
Hardware specifications
FORM FACTOR
- Compact panel — flush or surface mount
- Dimensions: 120mm × 80mm × 22mm
- Weight: 340g
- Finish: Matte black / brushed silver
READER
- QR code — encrypted, single-use, time-bound
- NFC — Apple Wallet, Google Wallet, HID compatible
- Read range: Up to 15cm
- Read speed: Under 2 seconds
- Works in direct sunlight — anti-glare lens
- Works in low light — IR illumination
ENVIRONMENTAL
- IP65 weatherproof rating
- Operating temperature: -20°C to 60°C
- Humidity: 0–95% non-condensing
- UV and salt-air resistant housing
- Vandal-resistant enclosure — IK08 rated
CONNECTIVITY
- Ethernet (PoE) — primary
- WiFi 802.11 b/g/n — backup
- 4G LTE cellular — optional module
POWER
- PoE 802.3af — primary
- 12V DC — alternative
- Failover: Local credential cache active during power interruption
Platform integration
- Cloud-managed — no on-premises server
- OTA firmware updates — automatic
- Real-time event logging
- Remote configuration from dashboard
- Compatible with: Vivo platform, existing door strikes, magnetic locks, gate controllers, and elevator relay boards
- Warranty: 3 years hardware + 10-year modular upgrade path
- Certifications: FCC, CE, IC
FEATURES
Every detail engineered for real-world deployment.
Anti-Glare QR Reader
Wide-angle lens with anti-glare coating reads QR codes reliably in direct Caribbean and Florida sunlight — conditions where cheaper panels fail.
IR Low-Light Illumination
Built-in infrared illumination ensures consistent QR reads at night and in shaded entry points without additional lighting infrastructure.
IP65 Weatherproof
Fully sealed against dust and water jets. Rated for outdoor installation in coastal, humid, and high-rainfall environments — including direct sea-facing entrances.
Vandal-Resistant Housing
IK08 impact-rated enclosure. Designed for high-traffic public entry points where hardware takes daily abuse.
PoE Power — No Electrician
Powered over the same ethernet cable that carries data. Single-cable installation at most entry points. No separate power run required.
Local Credential Cache
QR credentials validated locally when internet is interrupted. Access continues normally during outages. Sync resumes automatically when connection is restored.
INSTALLATION
Installed in under two hours per entry point.
Single PoE Ethernet Cable
Power
Data
Single cable connection
PoE ethernet cable connected — carries power and data simultaneously. No separate power run. No electrician required for most installs.
Cloud provisioned
Panel registered to your Vivo account from the dashboard. Access rules, credential types, and time windows configured remotely. No on-site programming required.
COMPATIBILITY
Works with what you already have.
STRIKES
Existing Door Strikes
Compatible with standard electric door strikes — 12V and 24V. No strike replacement required in most installations.
MAG LOCKS
Magnetic Locks
Direct integration with magnetic lock systems. Fail-safe and fail-secure configurations supported.
GATES
Barrier Gate Controllers
Compatible with LiftMaster, FAAC, BFT, and most major barrier gate controller brands.
ELEVATORS
Elevator Relay Boards
Connects to elevator floor control relay boards for integrated vertical access control.
WIRING
Existing Wiring
Works with existing two-wire and four-wire intercom wiring in most retrofit scenarios.
3RD PARTY
Third-Party Access Systems
Compatible with HID, ASSA ABLOY, and major access control ecosystems via Wiegand and OSDP interfaces.
DEPLOYMENT
Where QR entry panels work best.
GATES
Vehicle & Pedestrian Gates
Outdoor-rated, weather-sealed, vandal-resistant. Built for the entry points that take the most punishment and need the most reliability.

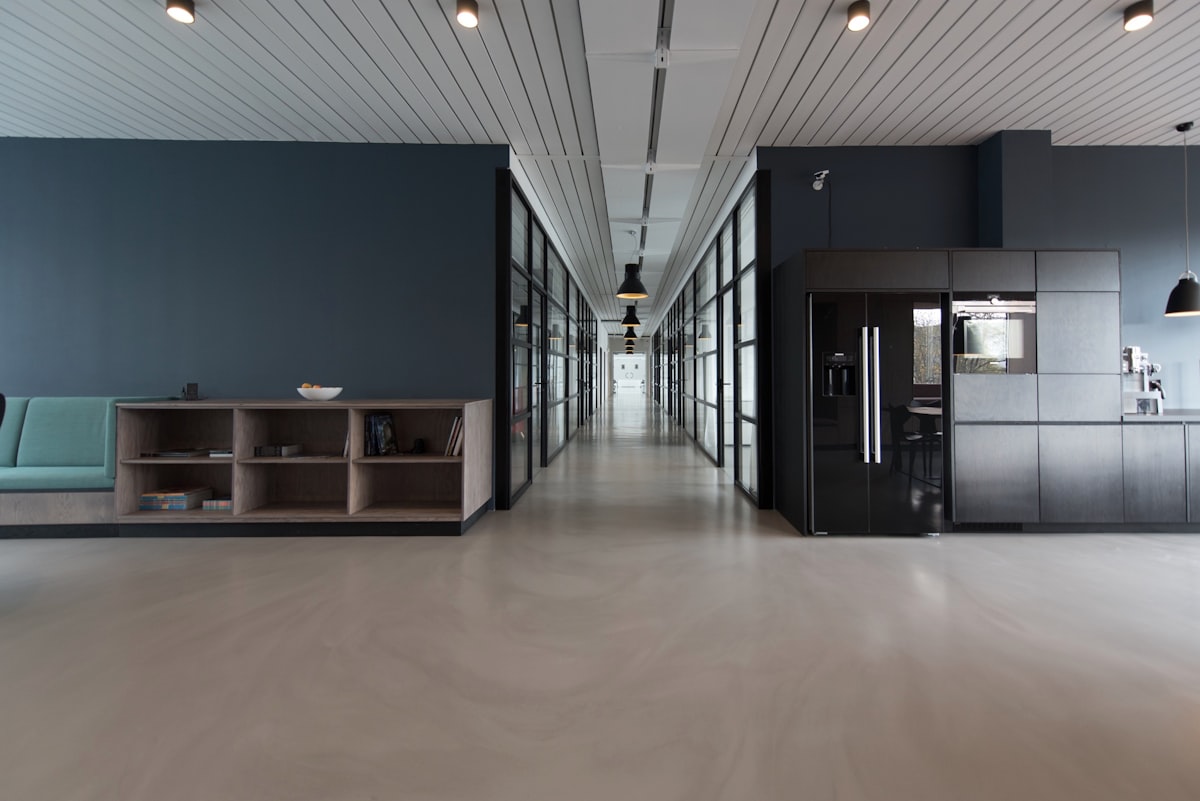

LOBBY
Building Lobby Entries
Compact form factor integrates cleanly into modern lobby design. Flush mount option for architectural installations where aesthetics matter.

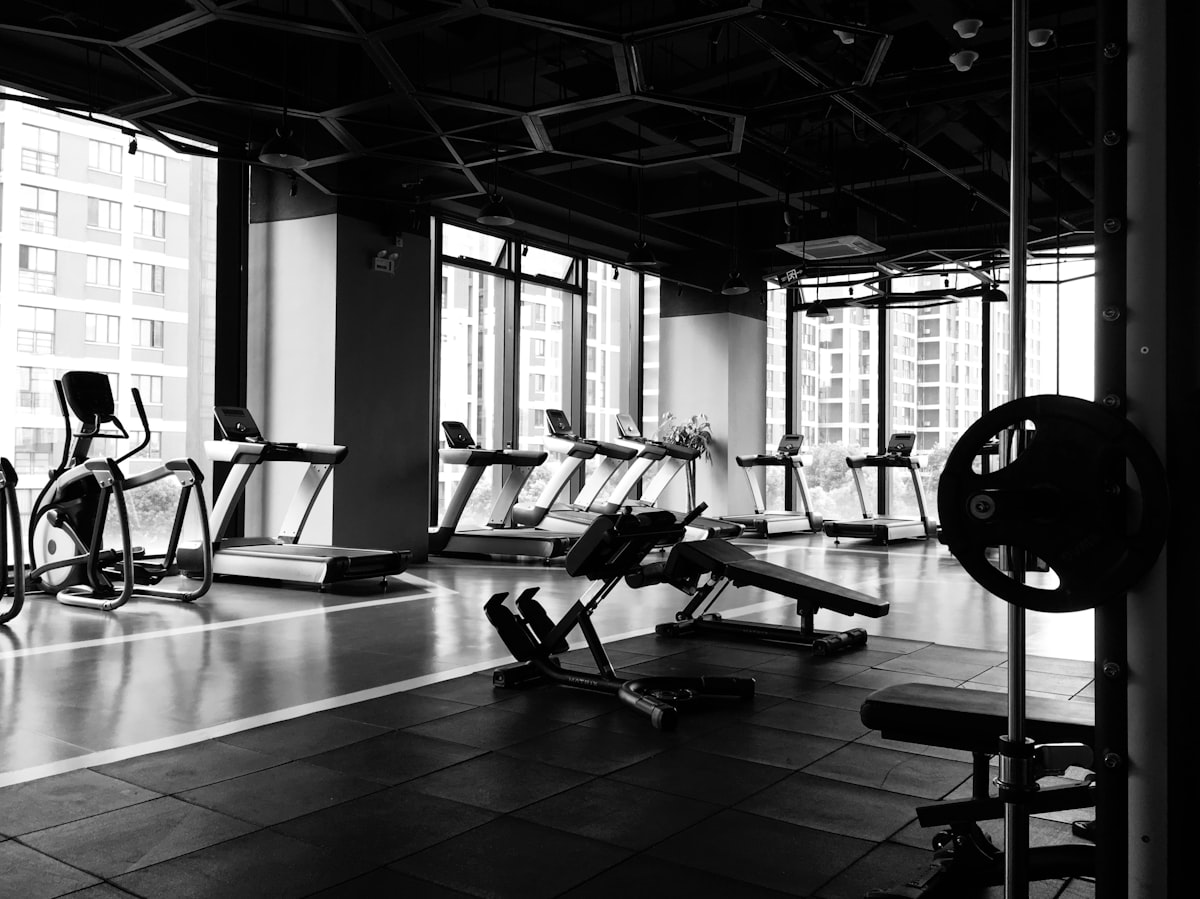

AMENITIES
Amenity Access Points
Pool gates, gym doors, rooftop access — single-cable installation at each point. Access rules configured per amenity from the dashboard.

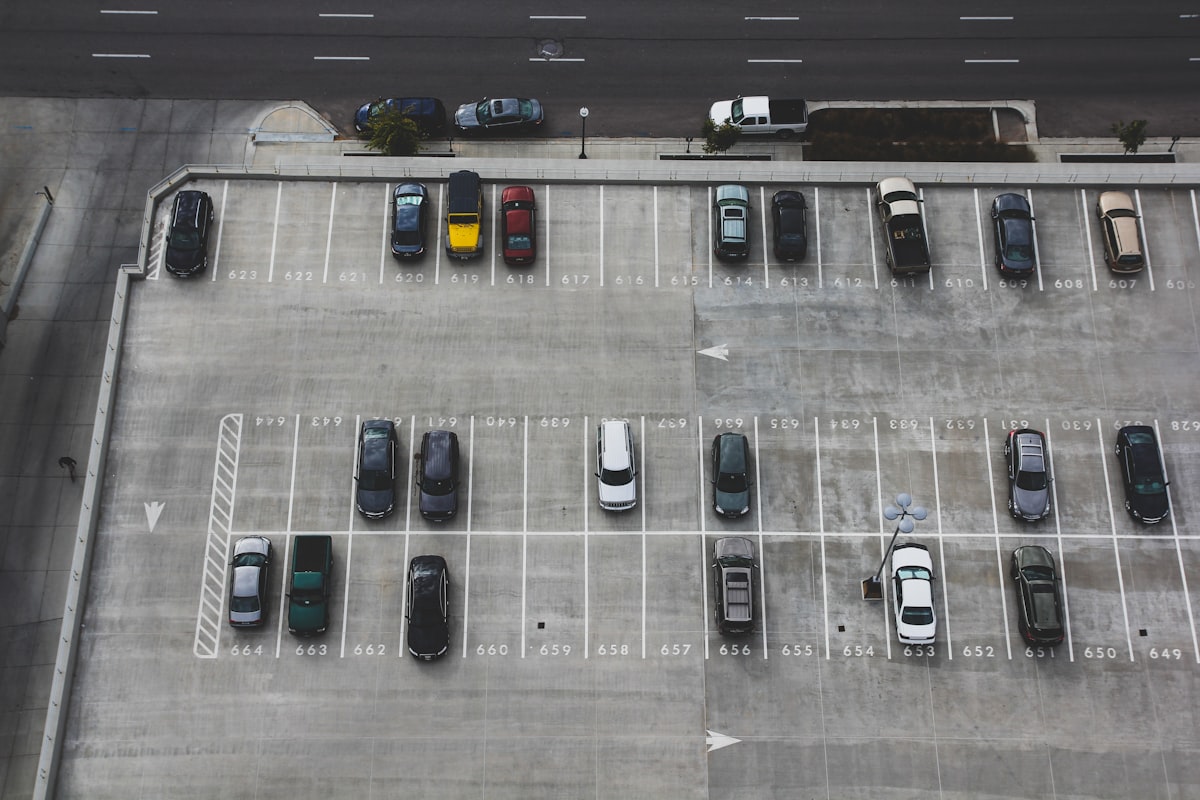

PARKING
Parking Level Entries
IP65 rated for parking garage environments. IR illumination for low-light underground entries. Local credential cache for basement connectivity gaps.
TRUSTED ACROSS THE REGION
Deployed across the U.S. and Caribbean in some of the hardest conditions.
IP65 weatherproof rating
IK08 vandal-resistance rating
10 yr hardware design life
"We’ve had Vivo panels on a sea-facing gate in Puerto Rico for two years. Salt air, direct sun, daily rain. Not one hardware failure. Not one service call."
Roberto Castillo Certified Vivo Dealer · San Juan, PR
"We swapped four legacy keypads for QR panels across the property in a single weekend. Residents scanned the first morning — zero questions to the office."
Andrea Pérez Property Manager · Brickell Reserve, Miami FL
"IK08 isn’t marketing — a tenant ran into a panel with a delivery dolly. Hairline scuff. The reader kept scanning. Try that with a plastic keypad."
David Kim Asset Manager · Coral Bay Living, Miami FL
"Mounted at a coastal entry that fries every consumer-grade reader we tried. Vivo panels are at year two and look like they were installed last week."
Patricia Reyes Board Treasurer · Vista del Mar, Bayamón PR
NEXT STEP
See the panel in a property like yours.
Book a demo. A certified integrator will bring hardware to your site, walk your entry points, and show you exactly how the panel fits your specific installation — with a scoped proposal within 72 hours.
